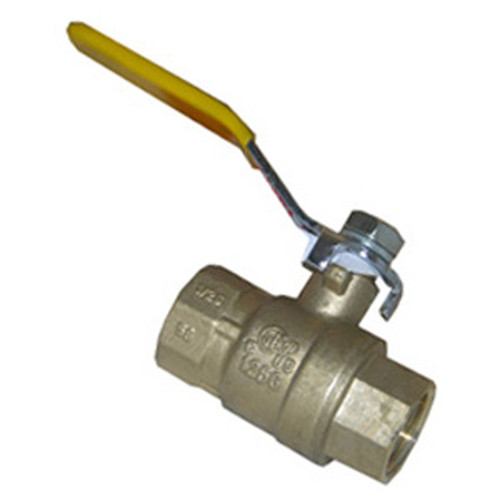

This 1‑inch full‑port ball valve is engineered for high‑pressure liquid and gas service, rated at 600 psi WOG. It features a forged brass body with hard‑chromium plated solid ball, a PTFE stem packing seal, and a heavy‑duty carbon steel handle insulated with yellow vinyl. The valve offers minimal pressure drop thanks to its full‑size ports and operates with a quick ¼‑turn action. It is suitable for a wide range of fluids, including water, oil, and gas, and can handle temperatures from –22 °F to 302 °F. Each unit is individually tested for reliability.

Features

• Full‑port design for minimal pressure drop
• Forged brass construction with hard‑chromium plated ball
• PTFE stem packing seal, thrust washer, and seats
• Yellow vinyl insulated heavy‑duty carbon steel handle
• Fast ¼‑turn open/close operation
• Pressure retaining stem, bottom‑loaded
• Not lead‑free, low operating torque
• Adjustable stem packing gland
• Maximum operating temperature 302 °F (150 °C)
• Minimum operating temperature –22 °F (–30 °C)
• Suitable for liquids and gases
• Individual testing for each valve

Specifications

• Pressure rating: 600 psi WOG
• Material: Brass
• Size: 1" NPT
• Weight: 1.05 lb
• Stem packing: PTFE
• Handle material: Carbon steel with vinyl insulation
