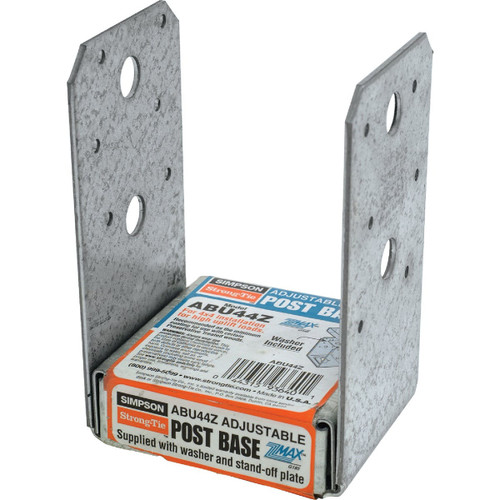

The Simpson Strong-Tie ABU is designed to attach wooden posts to existing concrete in high capacity applications. The built-in 1-in. standoff of this adjustable post base helps to prevent rot at the end of the post. The ABU has a slotted anchor hole in the base for adjustability and attaches to the post with nails, Strong-Drive SD Connector screws or bolts. This versatile post base makes a cost-effective option for securing a post to the foundation, with a design built for maximum uplift performance.

Features

• The slot in the base enables flexibility around the anchor bolt, making precise post placement easier
• 1-in. standoff design meets code requirements for structural posts installed in basements or exposed to weather or water splash
• Increased uplift loads for earthquake or wind loading
• Nominal post size: Rough 6x6
• Steel gauge: Base 12, strap 10
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
• Install with 0.162 in. x 3-1/2 in. nails or 1/2 in. diameter machine bolts

Specifications

• Material: Galvanized Steel
• Type: Adjustable Post Base
• Finish: ZMAX
• Size: 6 In. x 6 In.
• Gauge: Base 12, strap 10
• Install With: 3-1/2 In. Nails or 1/2 In. Bolts
• Dimensions: Rough 6x6
• Uplift: Nails: 2,475 Lb., Bolts: 2,190 Lb.
• Download: 18,205 Lb.
