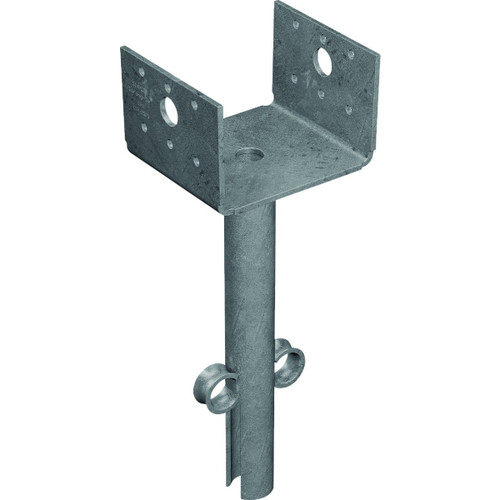

The EPB series provides a connection between a post (or column) for decks, patio covers and other top-supported structures. Added standoff adjustability to suit a variety of applications. Install in wet concrete. Simpson Strong-Tie elevated base plate allows 1 In. to 2-1/2 In. clearance above concrete. 12-gauge base plate, 1-1/16 In. O.D. x 8 In. or 12 In. pipe. Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports). Simpson Strong-Tie gray paint (may be ordered HDG-hot dip galvanized).
Features
• For top-supported structures
• 4 In. x 4 In.
• Gray Paint
Specifications
• Material: Steel
• Type: Elevated
• Finish: Gray Paint
• Size: 4 In. x 4 In.
• Gauge: 12ga
• Install With: 8-16d Nails
• Dimensions: 3-9/16 In. W x 3-1/4 In. L x 2-5/16 In H
• Uplift: 995 Lb. Non-Cracked; 695 Lb. Cracked
• Download: 3465 Lb.
