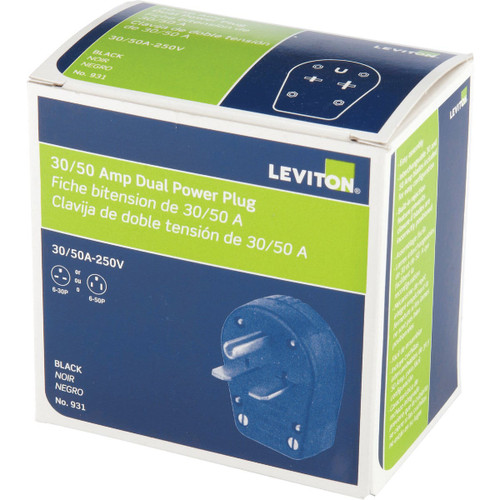

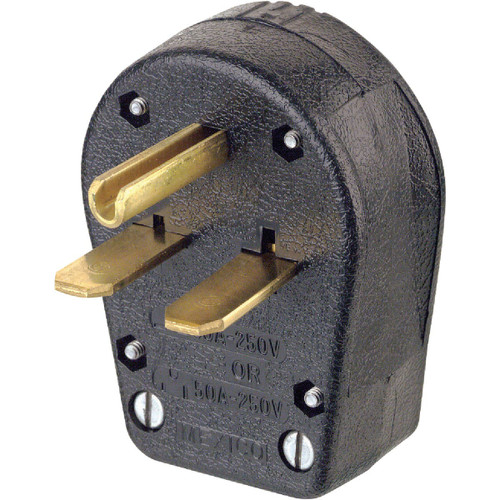

30A and 50A right angle, dead front plug. Includes 30A adjustable blade and flat 50A blade. Built-in rejection feature prevents closure if blade is incorrectly positioned. Cord clamp for use with No. 14, 12, 10, 8, and 6 AWG round cord and No. 10/3 SRDT, 8/2-10/1 SRDT, and 6/2-8/1 flat wire. Cord diameter 0.630 In. -1.050 In. Shell and bottom hinged for easy assembly. Zinc-plated steel screws. 30A/250V grounding, NEMA 6-30P. 50A/250V grounding, NEMA 6-50P. UL (Underwriter's Laboratories) and CSA (Canadian Standards Association) listed.

Features

• Ideal for indoor and outdoor use
• Moisture, chemical and abuse-resistant
• Backwire clamps securely for maximum conductivity
• Tough thermoplastic shell for long-life
• Solid brass blades with color-coded terminals simplify wiring
• Interchangeable blades eliminate need for stocking different devices
• Built-in rejection feature prevents closure if blades are incorrectly positioned

Specifications

• Color: BLACK
• Amperage: 30/50
• Voltage: 250
• Number Of Wires: 3
• Number of Poles: 2
• NEMA Configuration: 6-30P, 5-50P
• Cord Diameter: 0.630 In. to 1.050 In.
• Blade Material: Brass
• Gauge: 14 to 16 AWG
• Blade Type: Straight
• Body Material: Thermoplastic
