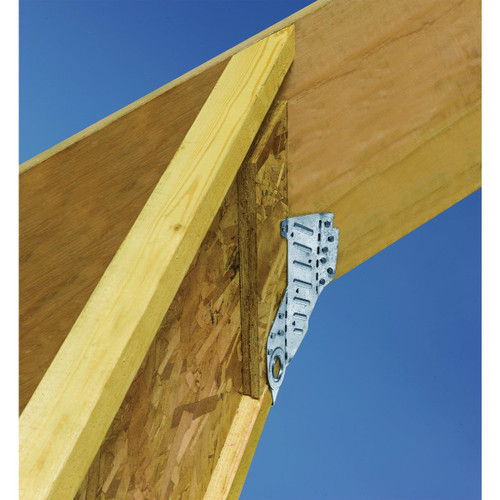

The patent-pending LSSR light slopeable/skewable rafter hanger is the next generation of a field-adjustable rafter hanger. One of its key features is that it can be installed after all of the rafters have been tacked into place. A versatile hanger, it is field adjustable for skew up to 45 degrees and features an innovative hinged swivel seat to adjust for up to a 45 degree slope.
Features
• Makes it possible to install after the rafters are already in place
• Flange design allows for easy skew adjustment, from 0 to 45
• Swivel seat adjusts easily and supports joist
• Nominal joist size: 2x10
• Actual joist width: 1-1/2 in.
• Made from 18-gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
Specifications
• Material: Steel
• Type: Joist Hanger
• Finish: ZMAX
• Gauge: 18
• Install With: 0.148 x 2-1/2 & 0.148 x 1-1/2 nails
• Joist Size: 1-1/2 In.
• Width (In.): 7.8795
• Height (In.): 9.173
• Base (In.): 2.798
